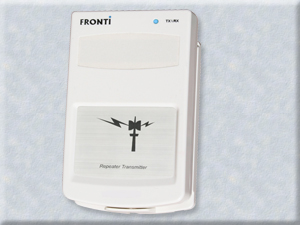

The FS315 Repeater transmitter increases the effective distance & range between the console and wireless sensors & detectors or between the console and external siren/AC power switch, there by enhances the overall power & versatility of the system. |
 |
- Increasing the distance between the console and the transmitter of sensors and detectors.
- Increasing the distance between the Console transmitter and the receiver of external siren and FS172 AC power switch.
- Can be combined with Fronti console and accessories to increase wireless control range on two-way communication.
- Can be registered totally 20pcs wireless sensors ID code repeater signal to the alarm console.
- One LED indicates the radio TX/RX signal working condition.
- With mounting bracket holder, it can be fixed on the wall.
- Built-in tamper switch and power failure detector can report event to alarm console.
|
 |
|
| Power Source |
DC 12V 500mA by AC adapter &
re-chargeable back-up battery |
| Stand-by current |
15mA (Max) |
| Broadcast range |
Up to 150M x 2 in a free space |
| Working Current |
30mA (Max) |
| Battery Life |
About 2 years |
| Dimensions |
135L x 78W x 28H (mm), Weight: 250g |
| Working frequency |
433.92.MHz or 869.25MHz |
