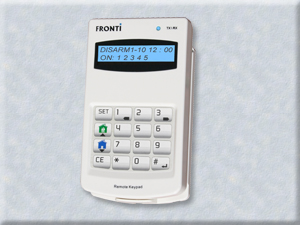

FS310W Wireless Remote Touch-pad & LCD
FS310W
FS310W has two-way communication, so that it can operate working mode and LCD can display all working events and alarm event.
Two partitions are separated to Arm/Disarm control, for main house and office or garage house, both area are protected.
It also a PSTN/GSM system, can combine with external phone set for call-in/out talking.
It can be combined with Fronti other accessories like PIR, Door/Window sensor, AC power detector, temperature sensor, wireless siren, AC power switch and ….etc.
They are completely wireless communication controlling system.
  1. Use touch pad to operate working mode and setup program on the alarm console.
  2. Built-in LCD display working mode, alarm event 250 logs and setting program data.
  3. LCD is blue color-backlight, it will light 10 seconds and delay auto off.
  4. It can combine with all of the Fronti alarm consoles.
  5. LCD can display indoor/outdoor temperature level of the temperature sensors report.
  6. LCD can display the 5 channels turn on number of the AC power switch.
  7. With 2 channels temperature sensors which can display INT/EXT -40 to +60℃ temperature level.
  8. When incorrect passwords entry (hacking), the digital keypad will lock out for protection.
  9. One LED to indicates the radio signal of working condition.
  10. With a master password and 9 user passwords to setup the console two partition working mode.
  11. With mounting bracket holder, it can be fixed on wall.
  12. With a buzzer to emit beep sound for key tone and alarm condition.
  13. Built-in tamper switch and power failure detector functions.
  14. Built-in rechargeable back-up battery.


Power Source DC9V AC Adaptor and rechargeable battery
Stand-by current 30mA (Max)
Broadcast range 150M in a free space
Working Current 60mA (Max)
Back-up Battery 4.8V/1.2Ahr rechargeable
Battery Back-up time 72 HRS (Min)
Dimensions 135L x 78W x 28H (mm), Weight: 640g
Working temperature range -10 deg C to 60 deg C
Working frequency 433.92.MHz or 869.25MHz
