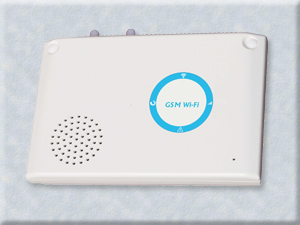

FS222E GSM Security Alarm Console Digital/Voice/SMS report to APP
The FS222E is GSM Security alarm console with digital/voice/SMS auto dialer that can combine with FS330A APP via SMS to setting working/program data and receive alarm data.
The transceiver module board can combine with Fronti wireless accessories, like keypad/sensors/siren.
It is a simple and easy operation on full SMS operation and setting function.
It can option Wi-Fi module for combine with smart phone FS330A APP.
  1. 10 passwords available set program’s data and working mode via SMS on APP.
  2. 70pcs sensors can be set to have alarm function of 24H, bypass, delay, door chime and silent.
  3. Set program’s data by FS310W keypad or FS330A Android APP.
  4. It can record 40 seconds and 4 kinds of different emergency voice messages by user.
  5. Pre-set to save 2 phone numbers for digital dialer CONTACT ID on alarm calling-out.
  6. Pre-set to save 4 phone numbers for playing Voice messages on alarm calling-out.
  7. Pre-set to save 3 phone numbers for sending event SMS on alarm calling-out.
  8. Low battery supervision is on the console and on each individual sensor.
  9. Built-in rechargeable back-up battery, Tamper Switch and Power Failure Detector can automatically call-out report alarm event.
  10. It has alarm siren sound and also can adjust the setting sound level.
  11. Set to save local language to the console / event / sensor’s name for the report.
  12. It can control the FS148S wireless external siren and report event to FS310W wireless keypad LCD.
  13. Alarm will call-out to contact ID, and then voice dialer will play voice alarm message.
  14. Alarm will send SMS with alarm event, sensor number/name and user name address.
  15. Call-in to send SMS command to set working mode and setup alarm program data, it will auto reply SMS to confirm.
  16. Call-in to send SMS command to console to request replying working mode.
  17. Can combine with FS330A APP via SMS to setting working/program data and receive alarm event data.
  18. The smart phone APP can view the all setting program alarm data and all event log of the console.(Wi-Fi module)
FS222E GSM Security Console D/V/SMS & APP
AC adapter 230V, 12VDC, 2A
Rechargeable Back-up battery
Power Source 12 DC 2A by AC adapter.
Battery Back-up time 12HRS (Min)
Back-up Battery 9.6V/1.2Ahr rechargeable
Working Current 500mA (Max)
Stand-by Current 50mA (Max)
Working temperature range -10 deg℃to 60 deg℃
Dimensions 190L x128W x 56H (mm), Weight:800g
Working frequency 433.92.MHz or 869.25MHz
Broadcast Range 150M in a free space
Package Dimension 290L x 180W x 70H(mm). Weight:1.25kg
