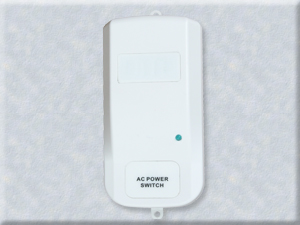

FS173 Wireless AC Power Switch (Wire type)

 The FS173 Wireless AC Power Switch is designed for remote control the AC power turn ON/OFF.The FS173 is for AC input/output via wire connect install type.

It can turn ON/OFF by FS310T remote Keypad or GSM send SMS to alarm console.
  1.  Designed for fix wire connect to device power sources that can meet any kind of plug type.
  2. It can be combined with FS310T remote keypad to control the AC power switch on/off.
  3. It can accept security console to control via phone call-in or GSM send SMS command.
  4. For any household electric appliance; it converts living style into convenient, comfortable and luxury.
  5. All models are compatible and can be linked together as a system for control.
  6. When the LED receives a signal, it will switch on/off.
  7. It can be combined with security console, when the console triggers alarm, it will turn on the light or camera.
  8. Can be combined with security console preset temperature lever HI/LO to control turn on/off the AC power switch.
  9. Can be combined with security console preset timer to control turn on/off the AC power switch.
  10. With dip-switch to setup channel 1 to 5 for user to control different device of power on/off.
  11. Can accept smoke detector trigger alarm to turn the AC power switch on/off.
  12. The water sensor or Universal Transmitter is trigger alarm to turn the AC power switch on/off.
  13. It can accept controlling 100 to 120V AC or 200 to 250V on 10A/2,000W (max) AC power on/off.

Power Source AC 200-250V AC plug
Stand-by / Working current 20mA /50mA (Max)
Working frequency 433.92.MHz or 869.25MHz
Broadcast range 150M in a free space, indoors about 30 M
Working temperature -10℃ to 60℃
Dimension 115L x 55W x 55H(mm), Weight: 100g
