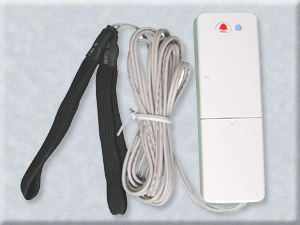

The FS157L is designed so that the transmitter is mounted on the wall and the flood sensor is placed in a location where water presence, such as a result of leakage or flooding, is probable.
Upon flood detection, a digital signal is transmitted to alarm console, user will received event SMS. |
 |
- Designed so that the transmitter is mounted on the wall and the flood sensor is placed in a location where water.
- resence, such as a result of leakage or flooding, is probable.
- Upon flood detection, digital signal is transmitted to alarm console, user will received event SMS.
- Designed the water sensor for easy installation on the ground.
- Used to detect the presence of water at any desired location.
- Low standby current on sleep mode to save power.
- Built-in tamper switch and zone switch to set-up sensor zone.
- LED indicates signal transmission and battery condition.
- High transmission power is for long distance working area.
- Sensor has low battery detector function which can report to console.
- It has auto report to confirm on normal working.
- Power source: 3V DC/CR123A battery for 3 years supper long battery lifespan.
|
 |
|
| Power Source |
DC3V CR123A Lithium battery |
| Stand-by current |
8uA (Max) |
| Broadcast range |
150M in a free space |
| Working Current |
8mA (Max) |
| Battery Life: |
3 years. (depending on usage conditions) |
| Working temperature range |
-10 deg C to 60 deg C |
| Dimensions |
100L x 30W x 20H (mm), Weight: 60g |
| Working frequency |
433.92.MHz or 869.25MHz |
