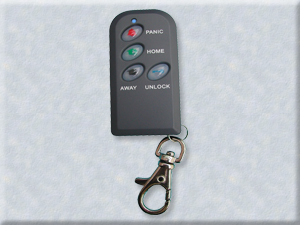

FS154S Remote Controls (4 buttons)

The FS154S Remote controller can be used to activate and deactivate working mode on the alarm console.

  1.  Designed for easy and user friendly operation.
  2. With CPU to control code hopping versions and 4 buttons without false alarm.
  3. Low standby current on sleep mode to save power.
  4. With panic, home, away and disarm function button.
  5. LED indicates signal transmission and battery condition.
  6. With software to turn on/off power function.
  7. Low battery detector function can report to console.
  8. Power source: 3V DC CR2032 battery for 2 years battery lifespan.


Power Source DC3V CR2032 battery
Stand-by current 3uA (Max)
Broadcast range 100M in a free space, indoors about 30M
Working Current 6mA (Max)
Battery Life: Up to 2 year. (Depending on usageconditions)
Working temperature range -10 deg C to 60 deg C
Dimensions 60L x 28W x 11H (mm), Weight: 30g
Working frequency 433.92.MHz or 869.25MHz
