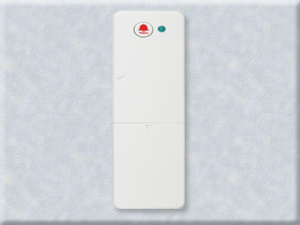

FS133L Wireless Vibration Sensor
FS133L
The FS133L Wireless Vibration Sensor can detect if a door or window is hit or broken or substantially moved in any way and then send a signal to alert the alarm console.
It also can be installed on the closet, drawer or glass mount, it’s a very effective glass-breaking detector or vibration sensor detector.


  1. Compatible with all normal closed wire type detectors such as glass breaking sensors or NC type Panic alarm switch.
  2. Any type of detectors glass, panic switch and more, can be connected.
  3. Built-in a panic alarm button for emergency help.
  4. Easy to install on the wall or window.
  5. Low standby current on sleep mode to save power.
  6. Built-in tamper switch and zone switch to set-up sensor zone.
  7. Built-in NC extension magnetic reed switch terminal input.
  8. LED indicates signal transmission and battery condition.
  9. High transmission power is for long distance working area.
  10. The sensor has low battery detector function which can report to console.
  11. It has auto report to confirm on normal working.


Power Source DC 3V CR123A Lithium battery
Stand-by current 8uA (Max)
Broadcast range 150M in a free space
Working Current 8mA (Max)
Working temperature range -10 deg C to 40 deg C
Battery Life 3 years(Depending on usage conditions )
Dimensions 100L x 30W x 20H (mm), Weight: 50g
Working frequency 433.92.MHz or 869.25MHz
